- Place of Origin: Shenzhen
- Brand Name: topray solar
- Model Number: TPS105S-50W-MONO

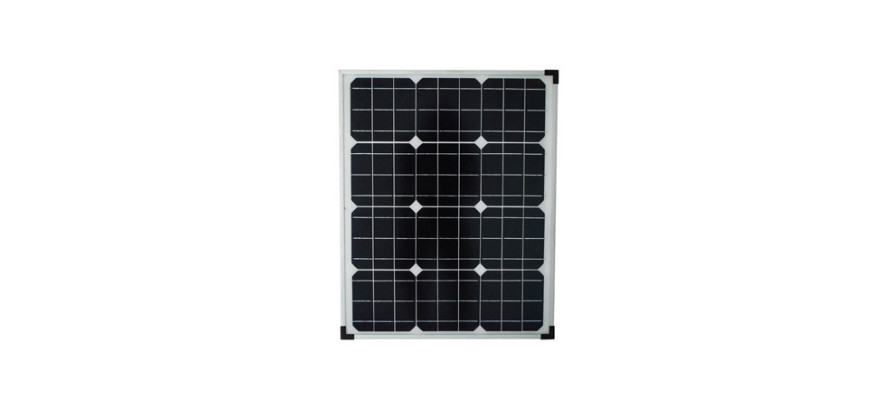

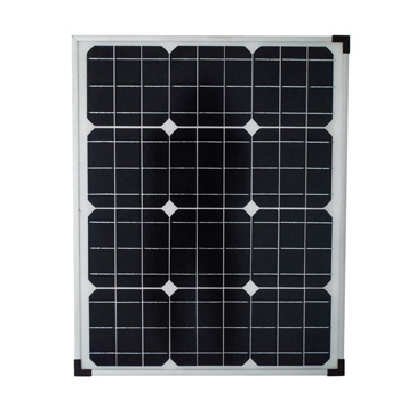

Model: TPS105S-50W-MONO
Battery type: single chip with high conversion efficiency
Battery chip quantity: 36pcs
Dimensions (A * B * C) MM:661*521*25MM
Frame: 25*17MM
Operating voltage (Vmp):17.2V
Operating current (Imp):2.91A
Open circuit voltage (Voc):21.5V
Short circuit current (Isc):3.2A
Weight: 3.6KG
Battery chip conversion efficiency: 17.8%
Bypass diode quantity: 1 anti recoil diodes
The standard parameters (STC:1000W/m -, 25 C, 1.5 AM)
